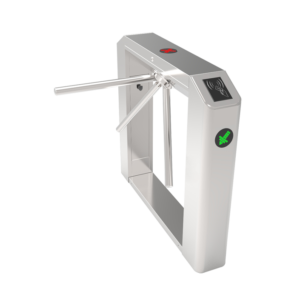

TRIPOD TURNSTILE TS2100 SERIES

Essl Tripod Turnstile

Essl Tripod Turnstile is a type of security barrier commonly used to control access to a restricted area. It typically consists of three upright poles that rotate to allow or deny entry to an individual. The turnstile can be controlled by a variety of means, such as a card reader, keypad, or biometric scanner, and can be integrated with other security systems, such as CCTV cameras and alarms. These turnstiles are commonly used in places like buildings, offices, schools, and other public places to control the flow of people.

Overview

Tripod Turnstile are compact and cost-effective entrance solution. Designing for smooth and silent operation, reducing power consumption, and wear and tear. It is suitable for areas with high traffic.

The TS2100 series offer a slim, two-legged casework made of stainless steel, ideal for sites where high traffic and space are issued

By receiving a signal from the access control system, or pushing a button, allows the entry of one person at a time. The status is shown on the led-way mode indicators at the top. Entering into different directions is electronically controlled. The default mode is to lock the mechanism until a valid authorization signal is received. If you want to set one side free, you can have it by adjusting the mechanism. In case of emergency, the horizontal arm will drop to allow free passage. Led way mode indicators are included as standard.

Function

Reliability

• The alloy steel tripod hub prevents mechanical wear
• Casework and tripod arms manufactured in stainless steel
• Electromagnets for the lock are used only when being activated. They are in standby mode when the device is idle.
• High-quality electrical components

Safety and User-Orientated Design

• Drop arm designed for emergency purposes
• No exposed screws, safer for the user.
• The smooth operation designed for mas transit application
• The pictogram on the device indicating access permission and direction of movement
• Specially designed case shape, user-friendly for passengers to punch cards or fingers.
• Anti-tailgate

Easy Integration

• • Flexible reader installation plate. Customers can easily integrate with the third-party reader
  • Standard electrical interface for third-party devices.
  • Using a compact mechanism, the turnstile has more space inside for integration

• The design of being vacuum at the bottom part of the device enables easy installation for other hardware.
